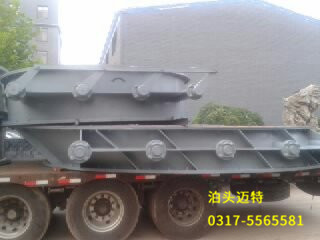

ZKQXb-0.05 electric tilt louver valve

First, use:

Slope-type shutters and supporting the use of electric actuators. Accept the adjustment or transmission unit signal, automatically control the valve opening to complete the regulator task. Widely used in building materials, metallurgy, mining, electricity and other industrial sectors to automatically adjust or control the flow of media in the pipeline.

Second, features:

Louvers, multi-axis structure, the shaft seat assembly structure, easy maintenance. Sealing filler with flexible graphite, adjustable sealing pressure ratio, valve plate flow line structure, flow resistance uniform flow, opening and closing torque is small, action sensitive, reliable performance.

Third, the working principle:

Electric actuators through the crank, connecting the louvers to achieve synchronous rotation of the control valve opening, regulating pipe flow.

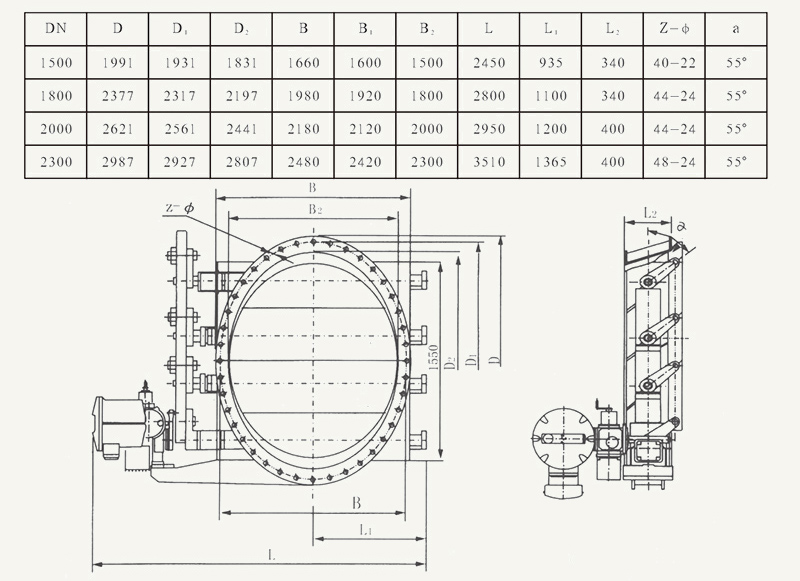

Fourth, the shape and installation dimensions
