SLVb s -0.6 manual single, two-way plate gate valve

First, use:

The gate valve is widely used in building materials, metallurgy, mining and other industries dust flow control of the pipeline material. Is to control the flow of dust off the ideal equipment.

Second, features:

The valve structure is simple, light weight, flexible operation, easy assembly and disassembly, the use of high-quality carbon steel, its high strength, good performance, long life; screw and mother with a soft cover structure, free from outside dust.

Third, the working principle:

The gate consists of frame, screw nut, hand wheel, sprocket, plate, hand wheel (sprocket), screw with screw nut and plate for horizontal reciprocating motion, to achieve the purpose of valve opening and closing.

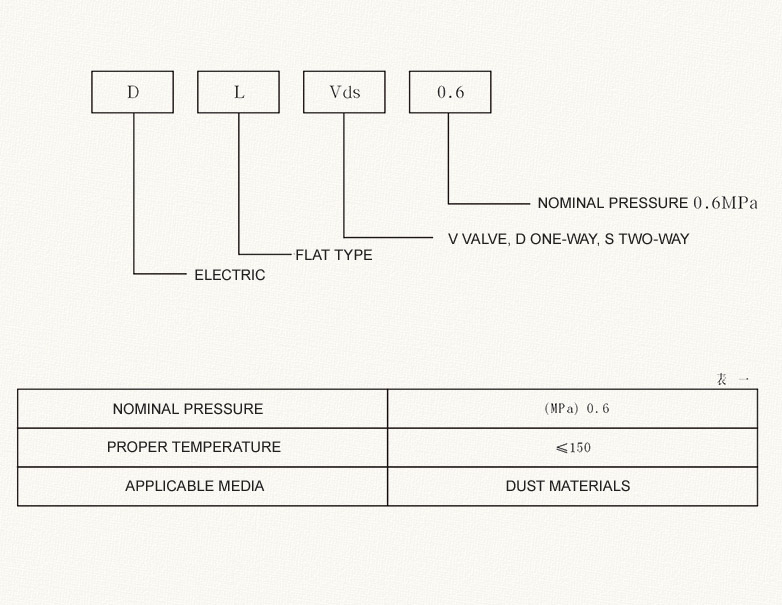

Fourth, the model preparation instructions
