Electric, manual, electro-hydraulic, pneumatic, three, four-way valve

First, use

This valve is a series of products developed by our factory according to the needs of the market and cooperated with relevant design institutes. It is the ideal equipment for controlling the material quick change-over in the material conveying system. It is widely used in building materials, metallurgy, mining, light industry and grain industry. And powdery materials.

Second, the characteristics

The valve uses high-quality steel welded structure, with small size, light weight, low resistance. Using electric push rod (electrohydraulic, pneumatic push rod) drive, you can quickly switch the flow of materials.

Third, the working principle

The valve mainly by the valve body, valve shaft, valve plate, crank mechanism, electric putter (electro-hydraulic putter or manual mechanism) and so on. When working, the linear reciprocating motion of the electric and hydraulic actuators is controlled by manual cranking of the valve shaft and the valve plate by an angle, so as to control the flow of materials and distribute the materials.

Fourth, the model preparation instructions

DFC electric (manual, electro-hydraulic and pneumatic) three-way distribution valve is divided into Ⅰ, Ⅱ type, all with guide plate, Ⅰ-type side of the three-way valve, Ⅱ type for the three-way valve, Valve is divided into Ⅲ ,, Ⅳ type, with guide plate Ⅲ type for the binary out, Ⅳ type into three out.

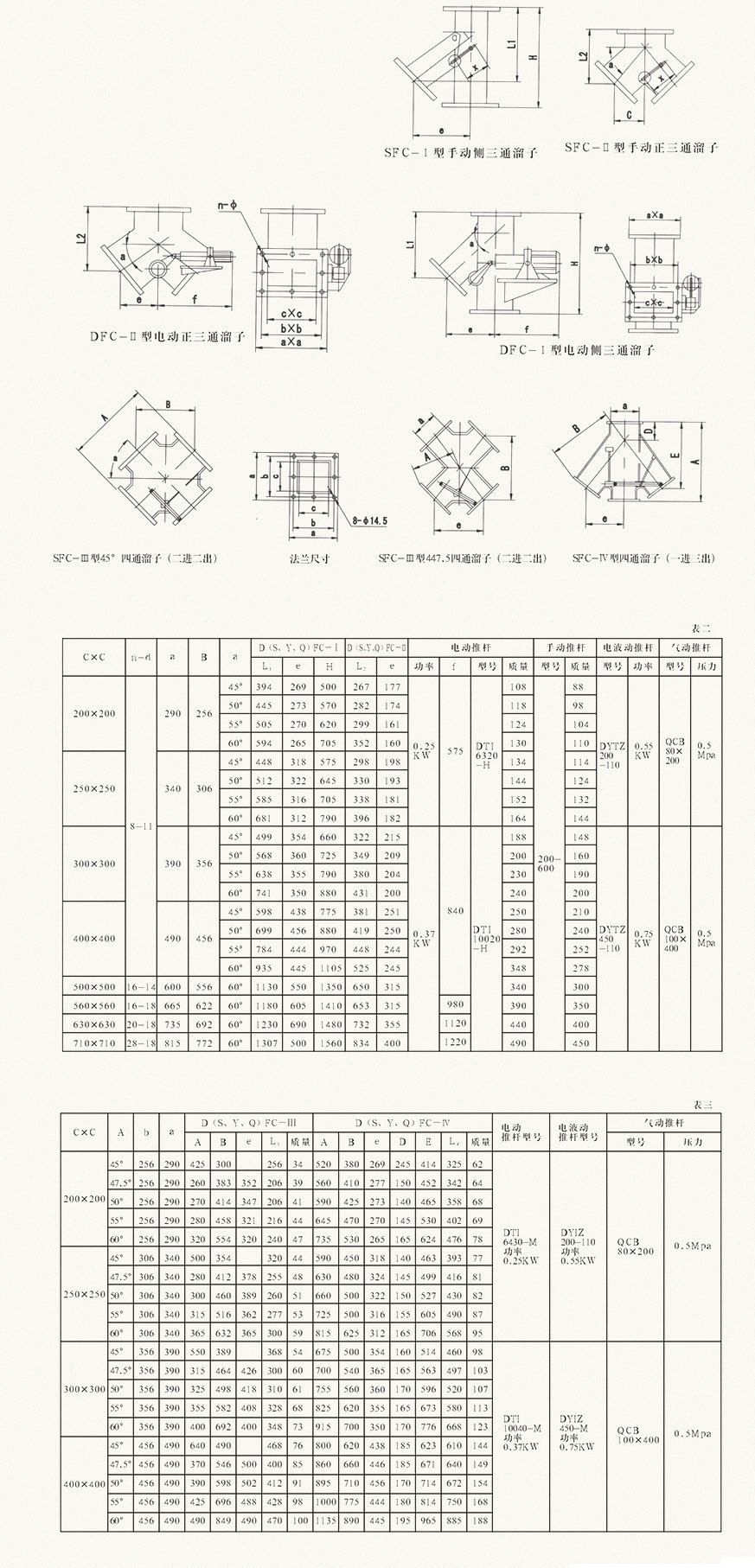

Fifth, the main performance parameters
