一、 use
Accordingto building materials, mining, metallurgy and other industries on smalland medium-sized solid, bulk materials, transportation control, feedingand other technology needs of the development of a new gate for ≤ 50mmmaterial control.
二、 Features
Thevalve structure is simple, easy to operate, no jamming. To overcome theplate gate due to the large particles caused by large opening andclosing force, and even off does not go in the characteristics of thevalve as a single rod operation, and thus easy to operate and flexible.The overall structure of high-quality steel welding, steel is good, nodeformation, long life, no maintenance, small and medium-sized crystal,block the ideal material control equipment.
三、 working principle

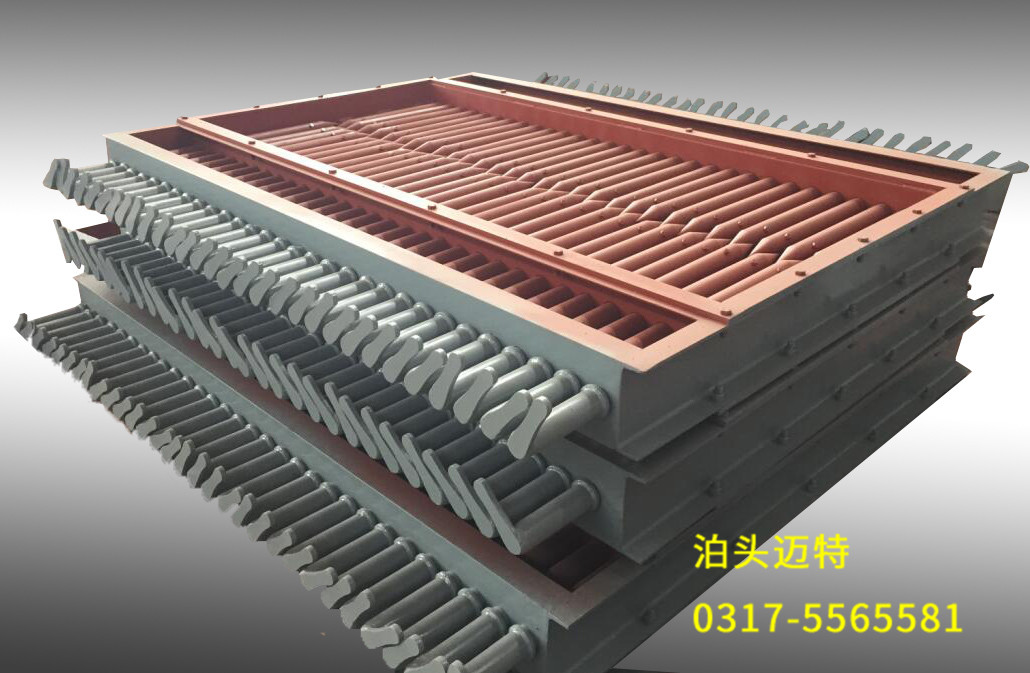

Whenthe rod is inserted into the frame, a group of bar groups is formed as aparallel grid plate, blocking the block material on the side of thegate, and if one of the bars is pulled out, a grid plate is formed Alarge gap, the material can enter the gate from the gap on the otherside, out of the bar should be the size of the process needs to decide.

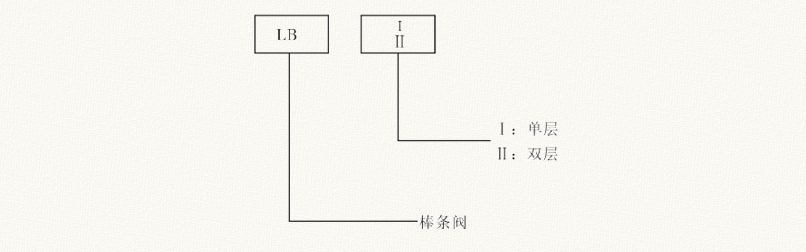

四、 Model preparation instructions
Applicable media | φ50mm below the granular material |
proper temperature(℃) | ≤350 |

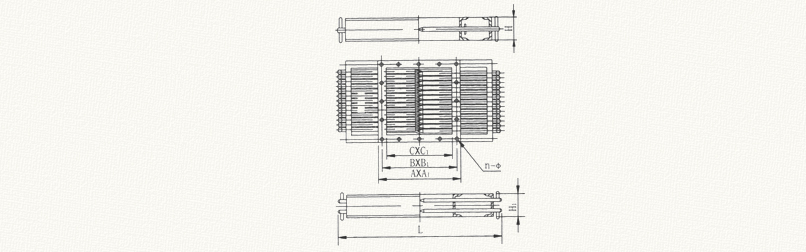

specification | AXA1 | BXB1 | CXC1 | L | H | H | n-φ | Quality(kg) |
300X300 | 390X390 | 350X350 | 300X300 | 800 | 120 | 140 | 8-φ14 | 173 |
400X400 | 490X490 | 450X450 | 400X400 | 1000 | 120 | 140 | 12-φ14 | 256 |
500X500 | 610X610 | 560X560 | 500X500 | 1200 | 140 | 160 | 16-φ18 | 385 |
600X600 | 710X710 | 660X660 | 600X600 | 1400 | 140 | 160 | 16-φ18 | 550 |
700X700 | 820 X820 | 770X770 | 700X700 | 1600 | 160 | 180 | 20-φ18 | 790 |
800X800 | 920X920 | 870X870 | 800X800 | 1800 | 160 | 180 | 20-φ18 | 892 |
900x900 | 1030X1030 | 972X972 | 900x900 | 2000 | 160 | 180 | 24- φ23 | 1077 |
1000x1000 | 1130X1130 | 1068X1068 | 1000x1000 | 2200 | 160 | 180 | 24- φ23 | 1338 |
1100x1100 | 1240X1240 | 1183X1183 | 1100x1100 | 2500 | 180 | 200 | 28- 0 23 | 1671 |
1200X1200 | 1340X1340 | 1280X1280 | 1200X1200 | 2700 | 180 | 200 | 32- 0 23 | 2089 |
Dosing to the material, said single-layer double-sided pumping rod stick bar

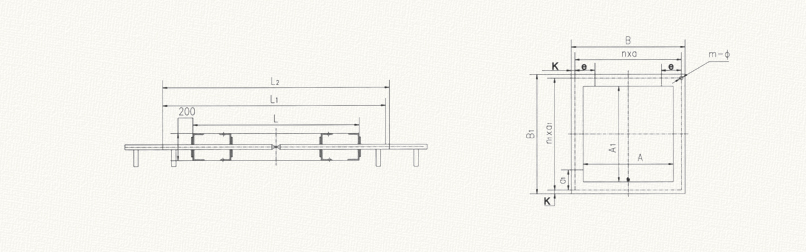

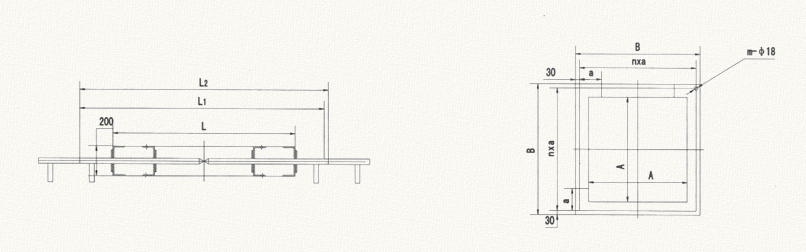

| Figure number | image name | A | A1 | B | B1 | L | L1 | L2 | K | e | n1*a1 | n*a | m | φ |
mm |
1 | GZP-001- 1 | 350 x550 Rod gate | 350 | 550 | 510 | 710 | 525 | 729 | 985 | 50 |
| 2X305 | 2X205 | 8 | φ14 |
2 | GZP-001-2 | 500 x550 Rod gate | 500 | 550 | 660 | 710 | 750 | 954 | 1360 | 50 |
| 2X305 | 2X280 | 8 | φ14 |
3 | GZP-001-3 | 550 x700 Rod gate | 550 | 700 | 710 | 860 | 825 | 1029 | 1485 | 50 |
| 2X380 | 2X305 | 8 | φ14 |
4 | GZP-001-4 | 550 x900 Rod gate | 550 | 900 | 710 | 1060 | 825 | 1029 | 1485 | 50 |
| 4X240 | 2X305 | 12 | φ14 |
5 | GZP-001-5 | 550 x1100 Rod gate | 550 | 1100 | 710 | 1260 | 825 | 1029 | 1485 | 50 |
| 4X290 | 2X305 | 12 | φ14 |
6 | GZP-001-6 | 600 x1000 Rod gate | 600 | 1000 | 760 | 1160 | 900 | 1104 | 1610 | 40 |
| 3X360 | 2X340 | 10 | φ18 |
7 | GZP-001-7 | 800 x1000 Rod gate | 800 | 1000 | 960 | 1160 | 1200 | 1404 | 2110 | 40 | 340 | 3X360 | 1 x200 | 12 | φ18 |
8 | GZP-001-8 | 1000x1000 Rod gate | 1000 | 1000 | 1160 | 1160 | 1500 | 1704 | 2610 | 40 | 340 | 3X360 | 1 X400 | 12 | φ18 |
9 | GZP-001-9 | 1000x1000 Rod gate | 1000 | 1000 | 1160 | 1160 | 1500 | 1704 | 2610 | 50 |
| 5X212 | 5X212 | 20 | φ18 |
