Single-layer, double-hammer-type lock wind

Please click

Please click

Browse through similar products

prev： Single, double-layer bar valve

next：Double electric lock wind flap valve

Product Name: Single-layer, double-hammer-type lock wind
Shelf time: 2019-9-19
Number of visits: [field:click /]

Product Details

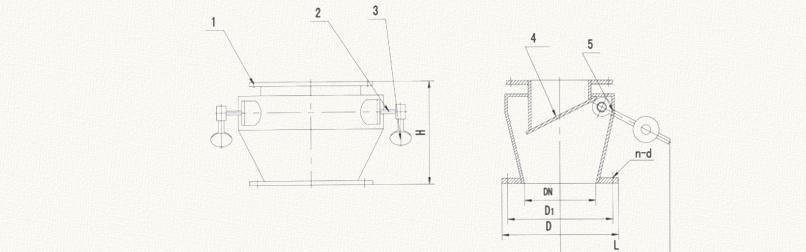

DN	D1	D	L	H	n-d	重量(kg)
400	450	490	1280	400	16- 013	346
450	500	540	1280	400	16- 013	418
500	560	600	1410	450	16- 013	505
550	610	650	1410	450	16- 013	583
600	660	700	1410	500	20- 013	652
650	710	750	1410	500	20- 013	705
700	760	800	1520	500	24- 013	755
750	810	850	1520	600	24- 013	803
800	860	900	1610	600	24- 018	841

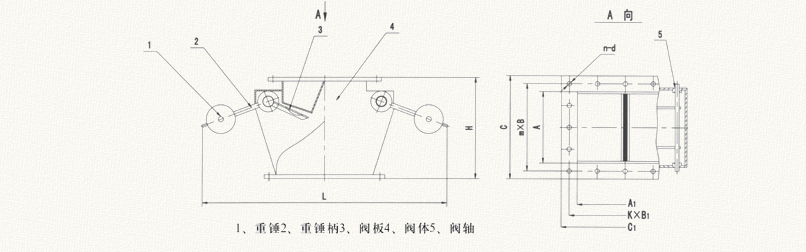

DaS2F1-1 II single-layer single-door heavy-duty lock wind flap valve

A1xA	KXB1	C1xC	n1 X B	L	H	n-d	重量(kg)
400X400	4X115	500X500	4X115	1400	400	16一φ13	346
500X400	4X140	600X500	4X115	1470	400	16一φ13	378
500X500	4X140	600X600	4X140	1470	400	16一φ13	464
600X400	5X132	700X500	4X115	1470	400	18一φ13	525
600X500	5X132	700X600	4X140	1470	600	18一φ13	561
600X600	5X132	700X700	5X132	1470	600	20一φ13	608
700X400	5X152	810X510	5X92	1520	600	20一φ13	649
700X500	5X152	810X610	5X112	1520	600	20一φ13	703
700X600	5X152	810X710	5X132	1520	600	20一φ13	723
700X700	5X152	810X810	5X152	1520	600	20一φ13	764
800X500	6X144	920X620	5X93	1620	600	22一φ18	808
800X600	6X144	920X720	5X133	1620	600	22一φ18	841
800X700	6X144	920X820	5X153	1620	600	22一φ18	885
800X800	6X144	920X920	6X144	1620	600	24一φ18	932
900x600	7X137.9	1020X720	5X133	1730	600	24一φ18	995
900X700	7X137.9	1020 X820	5X153	1730	600	24一φ18	1040
900x800	7X137.9	1020X920	6X144	1730	600	26一φ18	1100
1000x600	7X152.9	1135X720	6X110.8	1810	675	26一φ24	1170
1000X700	7X152.9	1135X835	6X128.3	1810	675	26一φ24	1230
1000x800	7X152.9	1120X935	7X152.9	1810	675	28一φ24	1300
