TPO series

Browse through similar products

prev：none

next： Single, double-layer bar valve

  • Product Name: TPO series
  • Shelf time: 2019-9-19
  • Number of visits: [field:click /]

Thisproduct is used for the cement industry or other process design,TPO-13, TPO-14 series, the specifications comply with the Tianjin CementIndustry Design and Research Institute of the "manual design process ofcement" requirements.

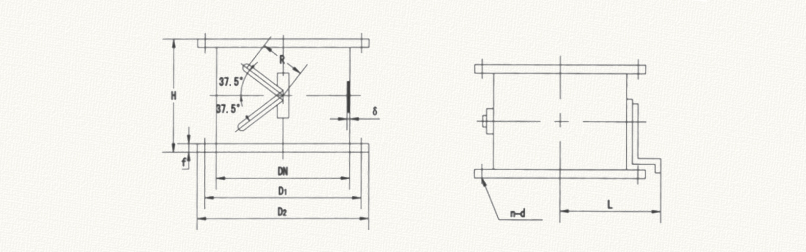

TPO-13



D

H

δ

R

L

D2

D1

f

d

n

重量(k)

图号

250

180

2

200

193

330

295

6

14

8

13.9

TP0-13-01

300

180

2

200

218

400

355

8

18

12

10.0

TP0-13-02

350

210

2

200

243

450

405

8

18

12

21.3

TP0-13-03

400

240

2

200

268

500

455

8

18

12

24.5

TP0-13-04

450

270

2.5

260

283

550

505

8

18

16

27.0

TP0-13-05

500

300

2.5

260

308

600

555

8

18

16

31.3

TP0-13-06

550

330

2.5

260

333

650

605

8

18

16

34.5

TP0-13-07

600

360

2.5

260

358

700

655

8

18

16

39.8

TP0-13-08

650

390

2.5

300

403

750

705

8

18

16

47.5

TP0-13-09

700

420

3

300

428

800

755

8

18

16

60.3

TP0-13-10

800

480

3

300

478

926

870

10

22

20

83.7

TP0-13-11

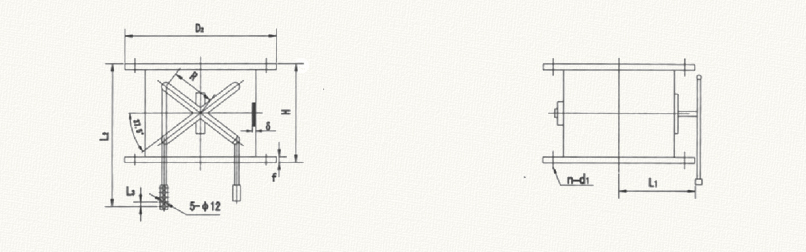

TPO-14

D

H

δ

L1

L2

L3

R

D2

D1

f

d1

n

weight(kg)

Figure number

250

180

2

193

546

33.5

110

330

295

6

14

8

13.9

TP0- 13-01

300

180

2

218

546

33.5

110

400

355

8

18

12

19.1

TP0-13-02

350

210

2

243

546

33.5

110

450

405

8

18

12

21.2

TP0-13-03

400

240

2.5

268

546

33.5

110

500

455

8

18

12

25.4

TP0- 13-04

450

270

2.5

298

837

61

200

550

505

8

18

16

35.6

TP0-13-05

500

300

2.5

323

837

61

200

600

555

8

18

16

40.0

TP0-13-06

550

330

2.5

348

837

61

200

650

605

8

18

16

44.0

TP0-13-07

600

360

2.5

373

837

61

200

700

655

8

18

16

48.5

TP0- 13-08

650

390

2.5

420

1124

46

300

750

705

8

18

16

76.9

TP0-13-09

700

420

3

445

1124

46

300

800

755

8

18

16

89.7

TP0-13-010

800

480

3

495

1124

46

300

920

870

10

22

20

111

TP0-13-1 1
