use:
This
series of fan gate is widely used in building materials, metallurgy,
mining, power, chemical, light industry, food and other industries, all
kinds of falling off the system control system.
Structural features:
The
valve structure is simple, with high-quality steel welded, driven by
electro-hydraulic actuator, smooth operation, low failure rate, you can
quickly cut off the material flow.
Applicable media |
proper temperature |
Medium flow rate介质流速 |
Crystal materials, solid particulate materials, powder materials |
≤300℃ |
≤28m/s |
voltage |
Adjustment characteristics |
Electrohydraulic actuator models |
380V50HZ |
Two-position switch |
DYT series |

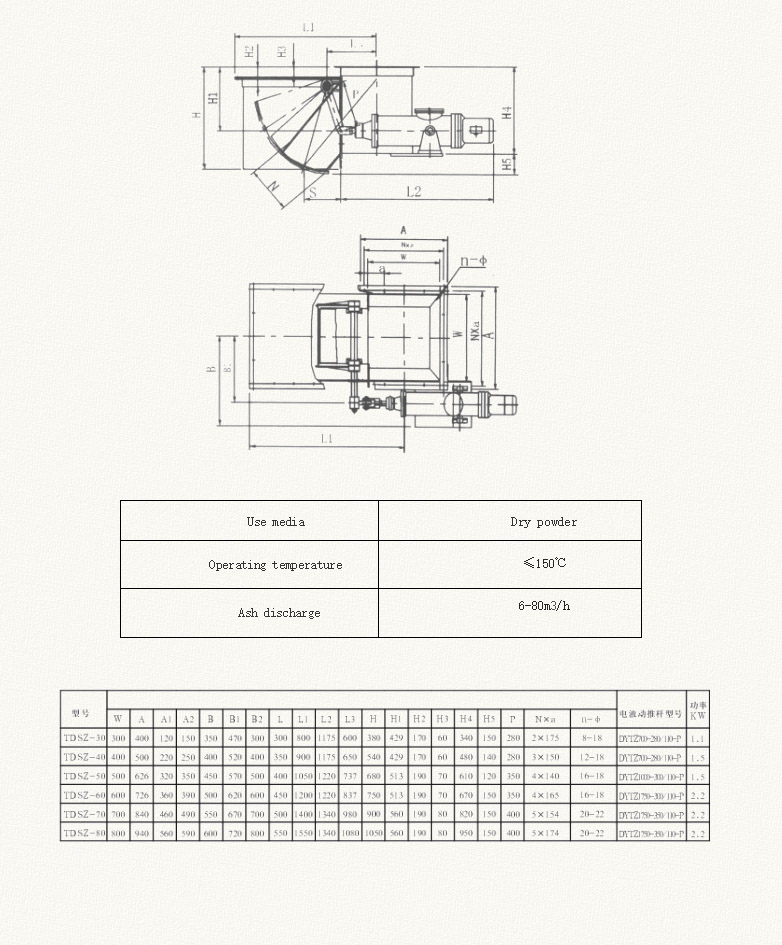

TDSZ an electro-hydraulic fan-shaped gate
This
series of electro-hydraulic fan gate is based on the special needs of
the building materials industry, used as cement clinker in addition to
the ideal equipment for discharge equipment.
Second, features:
The
use of electro-hydraulic putter as a power source to replace the
cylinder drive, saving the project cost of investment; body structure of
the stage structure, reducing the impact of material flow ; Key parts
of the body laying fence structure of wear-resistant liner, reducing the
liner directly wear.
