use
The
butterfly valve and supporting the use of electric actuators, widely
used in petroleum, chemical, metallurgy, power plants and other
industrial production process of automatic adjustment and remote
control. Particularly suitable for low pressure, high flow of gas
pipeline.

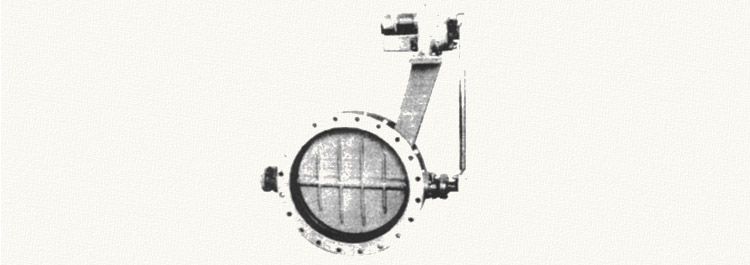

Electric
butterfly valve and supporting the use of electric actuators, widely
used in metallurgy, power, petroleum, chemicals, building materials and
other industrial sectors. It is the liquid, gas, steam and other media
in the pipeline according to different control signals to change the
flow size. In order to achieve the industrial production process of
automatic adjustment and remote control.

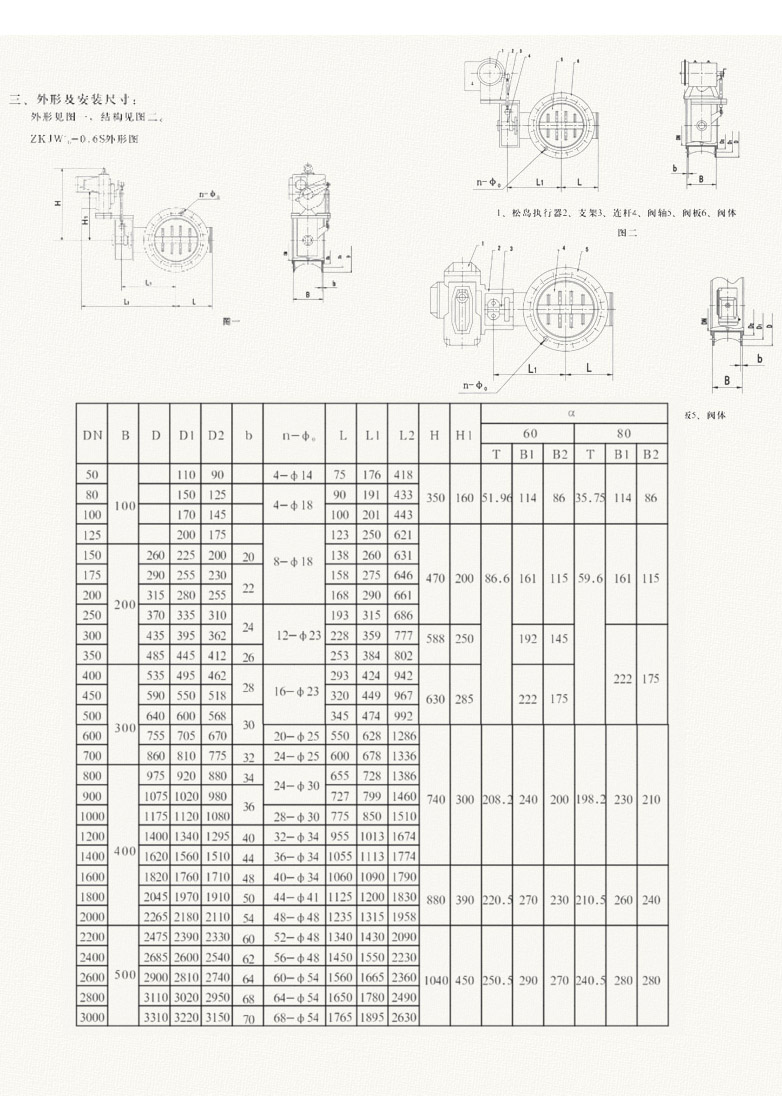

Nominal diameterDN(mm) | 50 | 80 | 100 | 125 | 150 | 175 | 200 | 250 | 300 | 350 | 400 | 450 | 500 |
Rated flow coefficientC | 85 | 220 | 340 | 530 | 770 | 1000 | 1360 | 2130 | 3060 | 4160 | 5450 | 6900 | 8500 |
Equipped with the implementing agencies | model | DKJ-210 | DKJ-310 | DKJ-4 10 |
ForceN.m | 100 | 250 | 600 |
voltage | AC 220V 50Hz |
Nominal diameterDN(mm) | 50 | 80 | 100 | 125 | 150 | 175 | 200 | 250 | 300 | 350 | 400 | 450 | 500 |
Rated flow coefficientC | 85 | 220 | 340 | 530 | 770 | 1000 | 1360 | 2130 | 3060 | 4160 | 5450 | 6900 | 8500 |
Equipped with the implementing agencies | model | DKJ-210 | DKJ-310 | DKJ-4 10 |
ForceN.m | 100 | 250 | 600 |
voltage | AC 220V 50Hz |
